Custom Control Panels: Laser Engraving & Cutting
Custom Control Panels: Laser Engraving & Cutting

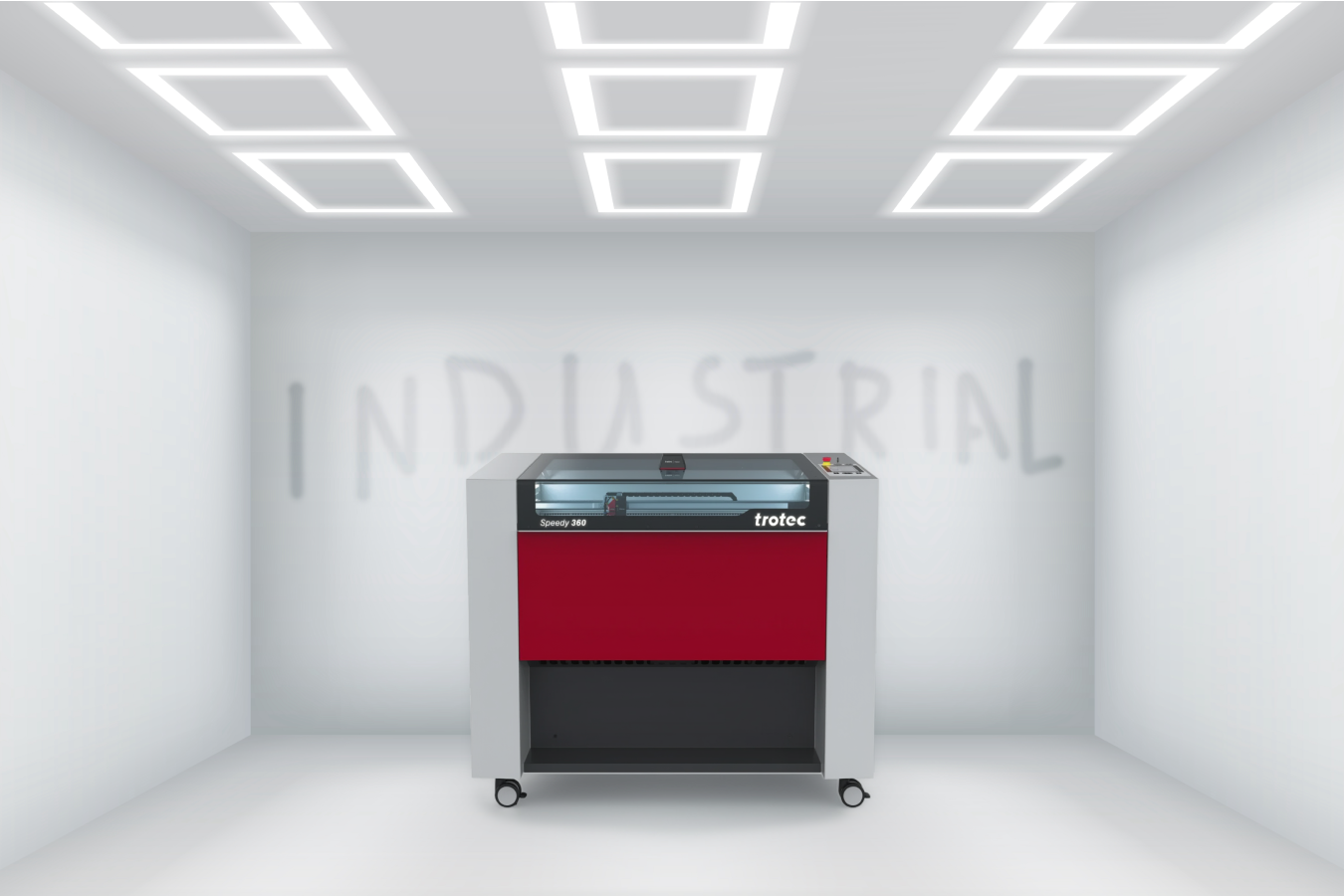

Precision legend plates, faceplates, graphic overlays and full control panels — engineered for harsh service. We run a modern CO2/fiber-capable system with an ≈800 × 500 mm class bed (≈32″ × 20″), high scan speed, air assist, vacuum table and pinned registration jigs for crisp edges and repeatability. Pickup at 189 Janice St, North Bay, ON or ship Canada-wide.
What we manufacture
Control panel faceplates, HMI/graphic overlays, legend plates, ID/nameplates, mimic panels, valve tags, breaker panels, serialized rating plates and multi-layer assemblies with PSA backers or hardware.
Plastic engraving (2-ply/3-ply)
High-contrast legends by removing the cap layer. Indoor/outdoor grades; colour-stable text.
Overlays (polycarbonate / polyester)
10–20 mil PC, 5–10 mil PET; hard-coat windows; dead-front indicators; industrial adhesives.
Metals (anodized Al / SS)
Fine fiber-marking for small text & barcodes; abrasion/solvent resistance with controlled heat input.
Materials, processes & tolerances
Engraving laminates
- Thickness: 0.8–1.6 mm (1/32–1/16″); UV-stable outdoor grades.
- Cap/core: high-contrast pairs (black/white, white/black, yellow/black).
- Backers: PSA or bare for hardware.
Laser processes
- CO2 raster for legends; CO2 vector for profiles & cutouts.
- Fiber marking on anodized Al/SS for durable contrast and fine codes.
- Kerf ref.: ~0.1–0.2 mm; corner radii ≥1.0 mm unless specified.
Fidelity & finish
- Min line ≥0.2 mm; min text ≥1.5 mm (plastics) / ≈1.2 mm (metals).
- Typical tolerance: ±0.25 mm (±0.010″); tighter per review.
- Clean, soot-free edges via tuned passes, focus and air assist; light deburr.
FAQ
How big can my panel be?
Single-piece work up to ≈800 × 500 mm fits the bed; larger panels tiled with pinned registration.
What thickness can you cut?
Laminates 0.8–1.6 mm, films 5–20 mil, and acrylic up to moderate thickness for control hardware.
How small can text be?
Plastics ≥1.5 mm; metal marking ≈1.2 mm depending on font and contrast.
Do you provide first-article approval?
Yes — pilot unit/small batch for fit & finish before full release.
Request a Quote / Ask a Question
Attach dimensions, substrate, quantity, cutouts, adhesive and any durability targets. We’ll respond with DFM notes and a timeline.
